Monday, February 23, 2009

I didn't die, I just took a break.

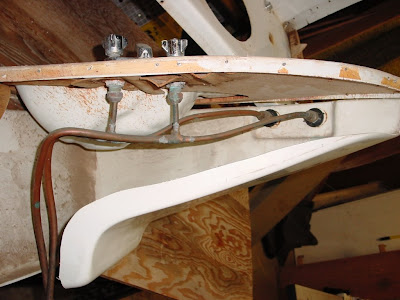

Well the weather finally cleared up enough to get a little time to work on the trailer. I decided to finish the removal of the insides. All I had left was the toilet sink tub shower combo and the rear end cap. I had researched the tub removal and knew that there were hidden rivets but never could find much detail. So, armed with my trusty tubing cutters and a Sawzall, I went to work. The first item was to disconnect the water lines to the sink. In the 66 Safari the water lines feed the sink faucet as well as the shower wand. There is a small access hole that is so located that you can't get in to disconnect the lines so I cut them.

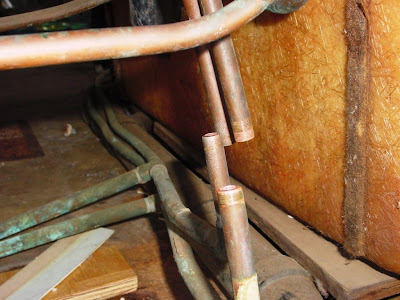

As you will see in the below photo, it was a good idea! I don't think there is anybody that could have snaked their hands around in there to get these lines disconnected. Keep in mind that in this photo, the open area facing you is actually riveted to the tub/shower surround. There is no access to this area until later. The only access to the connections are thru the opening at the lower left of the photo, so just cut it.
The next step was to remove the drain lines to the sink and tub. You do this with a tool that I found at the big box orange store that has an "X" on the end. It engages the X in the bottom of the drain and it unscrews. The sink was a little tight so I applied a little heat to it and loosened the sealant and it came right out. Next was the tub drain. First attempt and the X tore out and fell to the bottom of the drain.

I used the sawzall to cut the sides and an air operated grinder to get the top flange cut in half.

The tape was applied to protect the bathtub but, I ain't that good kids!

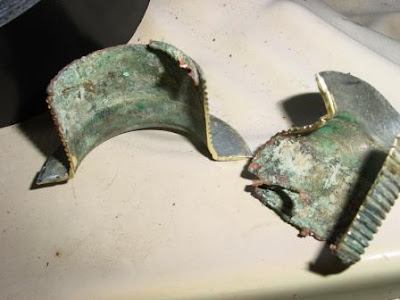

I then put a punch on the cut lines and broke that sucker in half and removed it.

Oh well, a little Bondo and it will be good as new. I have to paint it anyway! The cuts are really shallow.

I will continue this in the next post, I have to get up and get a beer.
